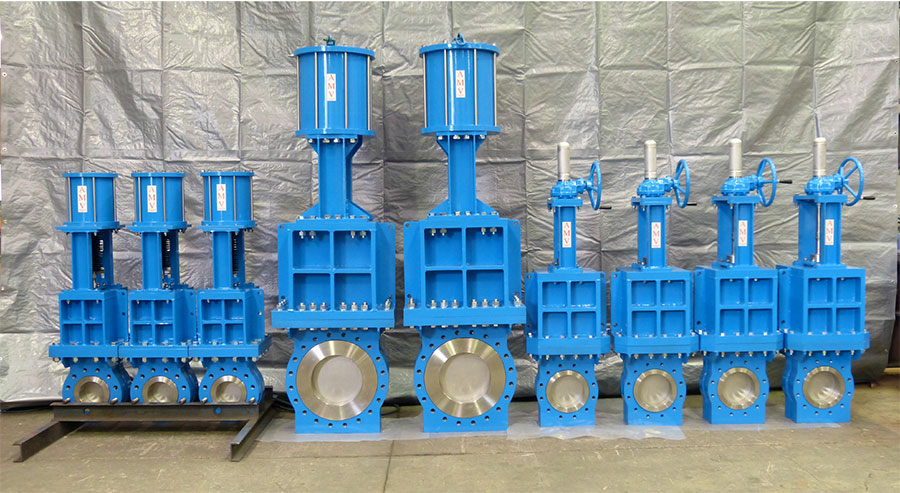

High Pressure Knife Gate Valves

  • Standard Materials of construction
  • Body Mild steel
  • Bonnet Mild steel
  • Gate 316 Stainless Steel
  • Seat 316 Stainless Steel
  • Inlet cone 316 Stainless Steel
  • Optional Materials of construction
  • Body 316 Stainless Steel
  • Bonnet 316 Stainless Steel
  • Gate Duplex Stainless Steel
  • Seat 316 Stainless Steel Ceramic lined
  • Inlet cone 316 Stainless Steel Ceramic lined



  • Standard flange drilling
  • ANSI 300 or ANSI 600
  • Others by request
  • Flanging to match lined pipe
  • i.e. 14” flange 12”bore as above
  • The Bore is normally tapered can be manufactured to suit plugs used on site
  • Valve Face to Face
  • 4” = 180 mm
  • 6” = 180 mm
  • 8”= 180 mm
  • 10”= 180 mm
  • 12”= 180 mm
